7700EO36 ...CAL-ROYAL Rim Exit Device

  • 7700EO36 ...CAL-ROYAL Rim Exit Device

$ 306.77


MODEL: 7700EO36 ACTUAL SIZE: 32" MAX. CUT DOWN:6" DOOR SIZE:30" to 36" door width

  • For Doors - 1¾" thick standard optional 2½" thick. 4½" minimum stile width for single or double door application using standard 938 strike and pull or lever, thumb piece and escutcheon trims. 2-3/4" back set.
  • Chassis - Nonferrous alloy (Panic Grade), steel (Fire Grade).
  • Cover - Non-ferrous plated material. Covers stock hollow metal doors with 161 cut out.
  • Mounting - Furnished with wood and machine screws. Available thru bolts on request. Thru bolts are included and in standard packaging on fire rated devices.
  • End Cap - Brass, bronze or stainless steel construction.
  • Alarm - Available. Prefix NALRM before PART#.
  • Hand - Non-handed, center hub for 2 3/4" back set.
  • Latch Bolt - Stainless steel ¾" throw with anti-pick feature.
  • Spring - Stainless steel throughout.
  • ANSI Standard - A156.3, Grade 1.

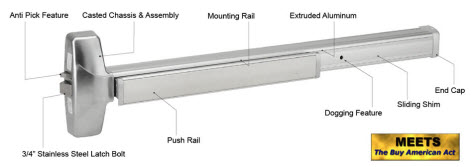

  • Rail Assembly - Heavy gauge extruded aluminum body with stainless steel push pad.
  • Dogging Feature - Allen-type key furnished standard on non-fire labeled devices.
  • Mullion - Available.
  • UL and ULC Listed - 7700 Series for panic. F7700 series for fire exit hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3 hours fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
  • Strike - 938 packed standard.
  • Finish - Architectural plated finishes.
  • Electronic Functions - (ELR) Electrical Latch Retraction and RX & LX Signal Switch available
  • TOUCHBAR HEIGHT TO FINISHED FLOOR: 41" (1041mm) at center
  • TOUCH BAR PROJECTION - NEUTRAL:3 5/8" (92mm)
  • TOUCH BAR PROJECTION - DEPRESSED:2 7/8" (73mm)
  • CENTER CASE: 8 1/16" x 2 3/4" x 2 1/2" (205mm x 68mm x 62mm)

Type Grade 1 Rim Exit Device
Vendor Cal-Royal
Tags Grade 1, Rim Exit Device
