NESC9830 **Passage Lever for Exit Devices**
NESC9830 - PASSAGE
Trim always operable and free
ANSI FUNCTION (62)

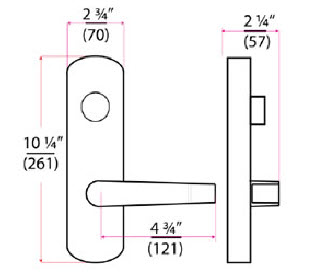

- Escutcheon Dimensions:
- 2-3/4" width x 10-1/4" length. Lever length: 4-3/4". Fits and covers
- 2-1/8" 161 cutout.
- Rigid, non clutch mechanism.
- Double heavy duty spring support to prevent sagging and enhance operation.
- Grade 1, thru-bolted design. Non-handed design. Easily field reversible.
- Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.
- Door Thickness - Standard 1-3/4". For 2-1/4" thick door use additional part# TAIL3.
