F9800EO36 **Fire Rated Rim Exit Device**

  • F9800EO36 **Fire Rated Rim Exit Device**
  • F9800EO36 **Fire Rated Rim Exit Device**

$ 271.47


MODEL: F9800EO36 ACTUAL SIZE: 32" MAX. CUT DOWN:6" DOOR SIZE:30" to 36" door width

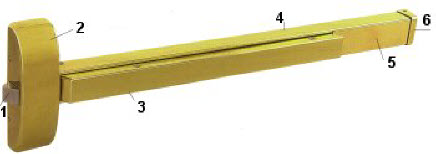

(See Picture)

  1. 3/4" Stainless Steel Latchbolt
  2. Casted Chasis & Ass'y
  3. Push Rail
  4. Mounting Rail
  5. Sliding Shim
  6. End Cap
  • Specifications:
  • For Doors - 1-3/4" thick standard optional 2-1/4" thick. 4-1/2" minimum stile width required for single or double door application using standard 239 strike and pull or lever, thumbpiece and escutcheon trims. 2-3/4" backset.
  • Chassis - Nonferrous alloy (Panic Grade), steel (Fire Grade)
  • Cover - Bronze or Stainless Steel
  • Mounting - Furnished with wood and machine screws. Available with thru bolts on request. Thru bolts are included and standard packaging on fire rated devices.
  • End Cap - Brass, Bronze or Stainless Steel construction.
  • Alarm - Available.
  • Hand - Non-handed, center hub.
  • Latch Bolt - Stainless Steel 3/4" throw.
  • Spring - Stainless Steel throughout.
  • ANSI Standard - A156.3, Grade 1.
  • Rail Assembly - Heavy gauge Brass, Bronze or Stainless Steel.
  • Strike - 239 packed standard (See strike page).
  • Dogging Feature - Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.
  • Mullion - Available.
  • UL and ULC Listed - 9800 Series for panic. F9800 Series for fire exit hardware for all types or 4' x 8' single doors and 8' x 8' double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
  • Finish - Architectural plated finishes.
  • Electronic Functions - (ELR) Electrical Latch Retraction and RX & LX Signal Switch available.
  • Dimensions
  • TOUCHBAR HEIGHT TO FINISHED FLOOR 41" (1043mm) at center
  • TOUCH BAR PROJECTION - NEUTRAL 2-1/2" (64mm)
  • TOUCH BAR PROJECTION - DEPRESSED 1-3/4" (45mm)
  • CENTER CASE 8-1/2" x 2-1/2" x 2" (216mm x 69mm x 52mm)

Type Grade 1 Rim**Fire Rated**Exit Devices
Vendor Cal-Royal
Tags Exit Device, Fire Rated, Grade 1, Rim Exit Device
