F7700EO48 **Fire Rated Rim Exit Device**
MODEL:F7700EO48 ACTUAL SIZE: 44" MAX. CUT DOWN:10" DOOR SIZE:38" to 48" door width -----
For Doors - 1¾" thick standard optional 2½" thick. 4½" minimum stile width for single or double door application using standard 938 strike and pull or lever, thumbpiece and escutcheon trims. 2-3/4" backset.
Chassis - Nonferrous alloy (Panic Grade), steel (Fire Grade).
Cover - Non-ferrous plated material. Covers stock hollow metal doors with 161 cut out.
Mounting - Furnished with wood and machine screws. Available thru bolts on request. Thru bolts are included and in standard packaging on fire rated devices.
End Cap - Brass, bronze or stainless steel construction.
Alarm - Available. Prefix NALRM before PART#.
Hand - Non-handed, center hub for 2 3/4" backset.
Latch Bolt - Stainless steel ¾" throw with anti-pick feature.
Spring - Stainless steel throughout.
ANSI Standard - A156.3, Grade 1.

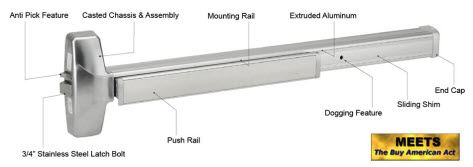

Rail Assembly - Heavy gauge extruded aluminum body with stainless steel push pad.
Dogging Feature - Allen-type key furnished standard on non-fire labeled devices.
Mullion - Available.
UL and ULC Listed - 7700 Series for panic. F7700 series for fire exit hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3 hours fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
Strike - 938 packed standard.
Finish - Architectural plated finishes.
Electronic Functions - (ELR) Electrical Latch Retraction and RX & LX Signal Switch available
----- TOUCHBAR HEIGHT TO FINISHED FLOOR: 41" (1041mm) at center
TOUCH BAR PROJECTION - NEUTRAL:3 5/8" (92mm)
TOUCH BAR PROJECTION - DEPRESSED:2 7/8" (73mm)
CENTER CASE: 8 1/16" x 2 3/4" x 2 1/2" (205mm x 68mm x 62mm)
