F9860V3684 ** Surface Vertical Rod 36" x 84" Fire Rated Exit Device**

  • F9860V3684 ** Surface Vertical Rod  36" x 84" Fire Rated Exit Device**

$ 403.27


MODEL:F9860V3684 ACTUAL SIZE: 32" MAX. CUT DOWN:6" DOOR SIZE:30" to 36" door width

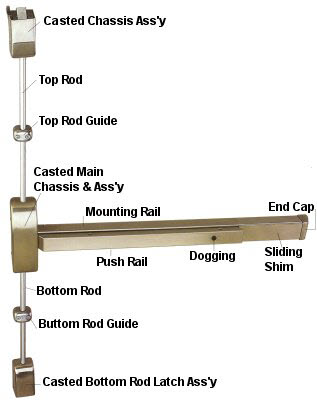

  • Specifications:
  • For Doors - 1-3/4" thick standard optional 2-1/4" thick. 3-3/4" minimum stile width required for single door application. 3-1/2" minimum stile width required for double door application. Lever, thumbpiece and escutcheon trims available. 2-3/4" backset.
  • Chassis - Nonferrous alloy (Panic Grade), steel (Fire Grade)
  • Cover - Brass, Bronze or Stainless Steel.
  • Mounting - Furnished with wood and machine screws. Thru bolts are standard packaging on fire rated devices.
  • Alarm - Available. Prefix "NALRM" before part #.
  • End Cap - Bronze or Stainless Steel Construction.
  • Hand - Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience.
  • Latch Bolt, Spring - Stainless Steel.
  • ANSI Standard - A156.3, Grade 1.
  • Rail Assembly - Heavy gauge Bronze or Stainless Steel.
  • Strike - See strike page.
  • Dogging Feature - Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.
  • UL and ULC Listed - 9860 Series for panic. F9860 Series for fire exit hardware for all types of 8' x 8' double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
  • Electronic Functions - (ELR) Electrical Latch Retraction and RX & LX Signal Switch available.
  • Finish - Architectural plated finishes.
  •  Dimensions
  • TOUCHBAR HEIGHT TO FINISHED FLOOR 41" (1043mm) at center
  • TOUCH BAR PROJECTION - NEUTRAL 2-1/2" (64mm)
  • TOUCH BAR PROJECTION - DEPRESSED 1-3/4" (45mm)
  • PANIC GRADE TOP & BOTTOM LATCH CASE 3-15/16" x 2-1/8" x 1-3/8" (100mm x 52mm x 42mm)
  • FIRE GRADE TOP LATCH CASE 3-15/16" x 2-11/16" x 2-1/16" (100mm x 68mm x 53mm)
  • FIRE GRADE BOTTOM LATCH CASE 3-15/16" x 2-1/8" x 1-3/8" (100mm x 52mm x 42mm)
  • TOP AND BOTTOM ROD LENGTH FOR 36" X 84" DOORS top rod 37-1/2" (955mm), bottom rod 84" (2134mm)
  • TOP AND BOTTOM ROD LENGTH FOR 48" X 96" DOORS top rod 49-5/8"(1260mm), bottom rod 96" (2438mm)
  • VERTICAL RODS 1/2" (13mm) round tubing

    Type Grade 1 Surface Vertical Rod**Fire Rated**
    Vendor Cal-Royal
    Tags Exit Device, Fire Rated, Grade 1, Surface Vertical Rod
